JF800 Engine Rod Conrod Bushing , Steel Bronze Excavator Spare Parts

Product Categories

Guangzhou Teikuko Auto Parts Co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

JF800 Engine Rod Conrod Bushing , Steel Bronze Excavator Spare Parts

Brand Name : JTP

Model Number : JF800

Certifiion : ISO9001:2008;ISO/TS16949:2009

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 5000pcs per month

Delivery Time : 5~10days

Packaging Details : Packed in carton firstly,and then reinforced with green sack for outer packing

Color : Sliver

Material : Steel + Bronze, Steel+Bronze

Condition : 100%new

Size : STD

Surface treatment : Cooper/Tin

Type : Sleeve

Contact Now

Steel Bronze excavator spera parts JF800 Engine bushing rod conrod bushing

Specifiion:

mechannical performance	Load capacity	Static load	150N/mm2
	Max.Working temperature	Grease Lubriion	150℃
	Max.Working temperature	Oil Lubriion	250℃
	PV value limit	Oil lubriion	10N/mm2.m/s
	PV value limit	Dry lubriion	2.8N/mm2.m/s
	Linear Velocity	Dry Friction	0.4m/s
	Linear Velocity	Grease Lubriion	2.5m/s
	Mating Axis	Hardness	≥53 HRC
	Mating Axis	Roughness	Ra-0.32~0.63
	Anti-tensile Strength		185 N/mm2
	Alloy Hardness		HB 60~90
	Friction coefficient		0.05~0.22
	Themal conductivity		47W/mk
	Heat-expansion Coefficient		18x10(-6)/k

Product Range:

Sleeve Bearings:

Model No.	Min. I.D.	Min.O.D.	Max.I.D.	Max.O.D.	Max. Length
DU,SF-1	6mm	8mm	300mm	305mm	100mm
DX,SF-2	10mm	12mm	300mm	305mm	100mm
JF800	10mm	12mm	173mm	180mm	100mm
FB090	10mm	12mm	300mm	305mm	100mm
FB092	10mm	12mm	300mm	305mm	100mm
JDB,JCB	8mm	12mm	160mm	180mm	150mm
FU	1.5mm	3mm	50mm	70mm	70mm
JGB	1.5mm	3mm	300mm	320mm	100mm

Flange Bearings:

Model No.	Min. I.D.	Min.O.D.	Max.I.D.	Max.O.D.	Min.F.D.	Max.F.D.	Max. Length
DU,SF-1	6mm	8mm	40mm	44mm	12mm	53mm	40mm
JF-800	40mm	46mm	95mm	105mm	60mm	144mm	127mm
FB090	25mm	28mm	300mm	305mm	35mm	340mm	90mm
FB092	25mm	28mm	300mm	305mm	35mm	340mm	90mm
JDB	10mm	14mm	120mm	140mm	22mm	170mm	100mm
FU	6mm	12mm	50mm	60mm	14mm	70mm	70mm
JGB	6mm	12mm	300mm	320mm	35mm	340mm	130mm

Why choose us:

1.Profession in diesel engine parts

2.Provide the most resonable service

3.The most compeitive price&goods

4The completly engine model and parts

5.Manage to finish the client's resonable demand

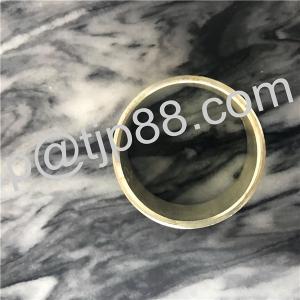

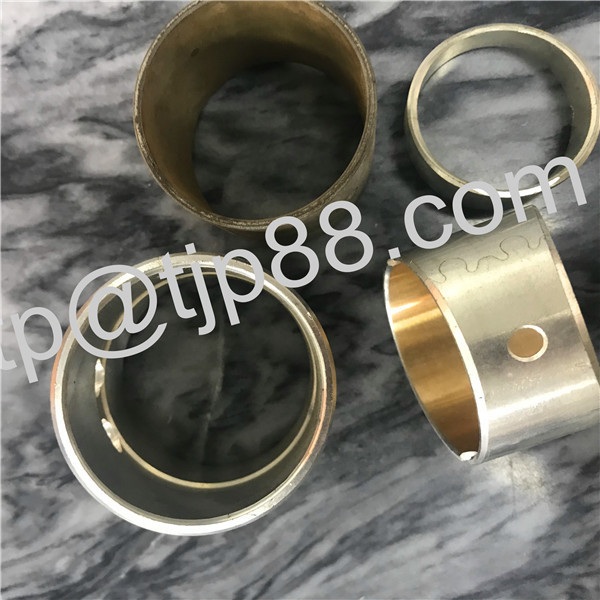

CONROD BUSHING PICTURE BE BELOW:

JF800 Engine Rod Conrod Bushing , Steel Bronze Excavator Spare Parts

WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
